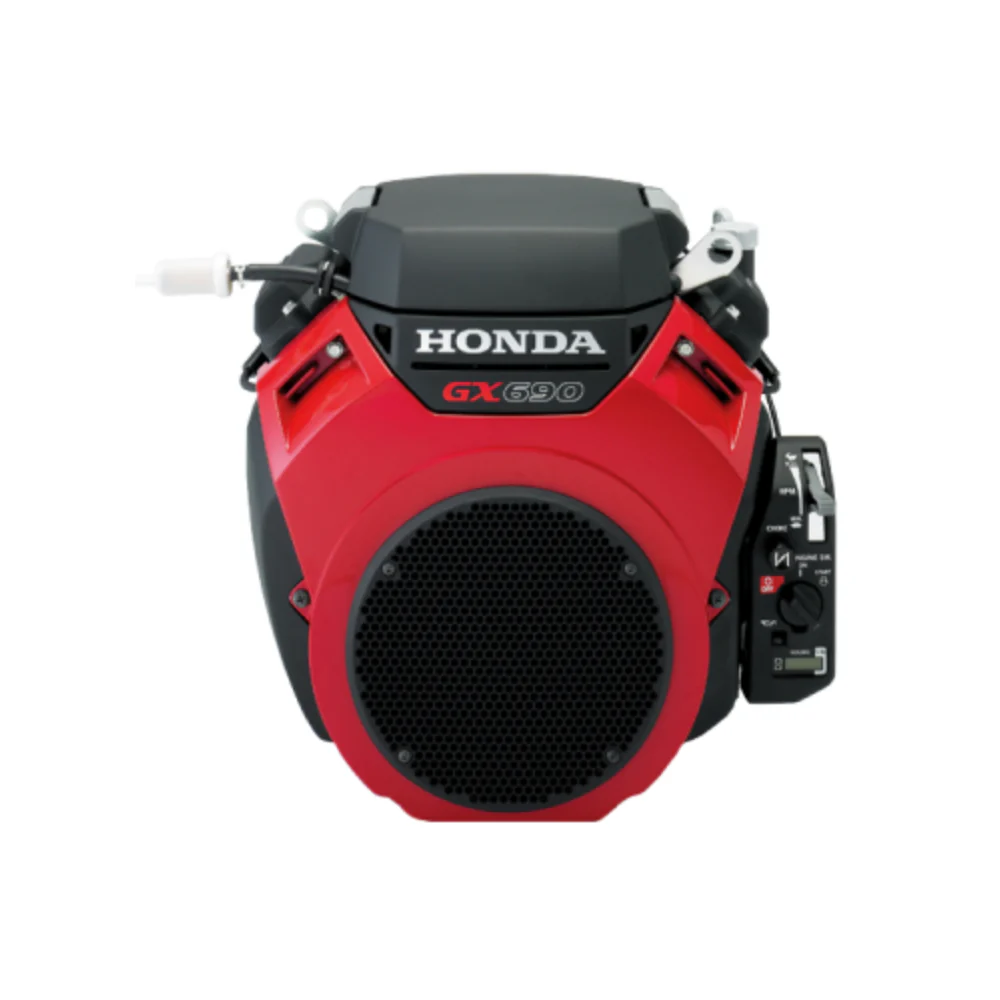

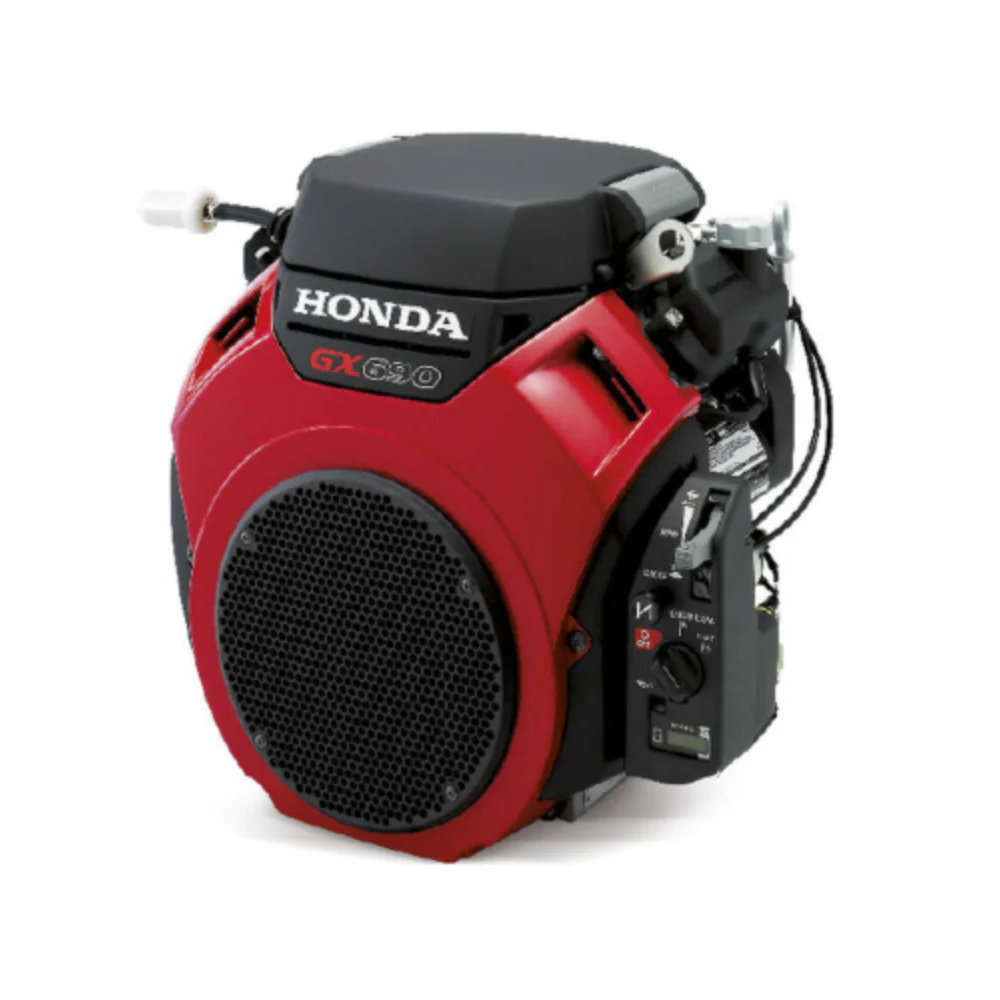

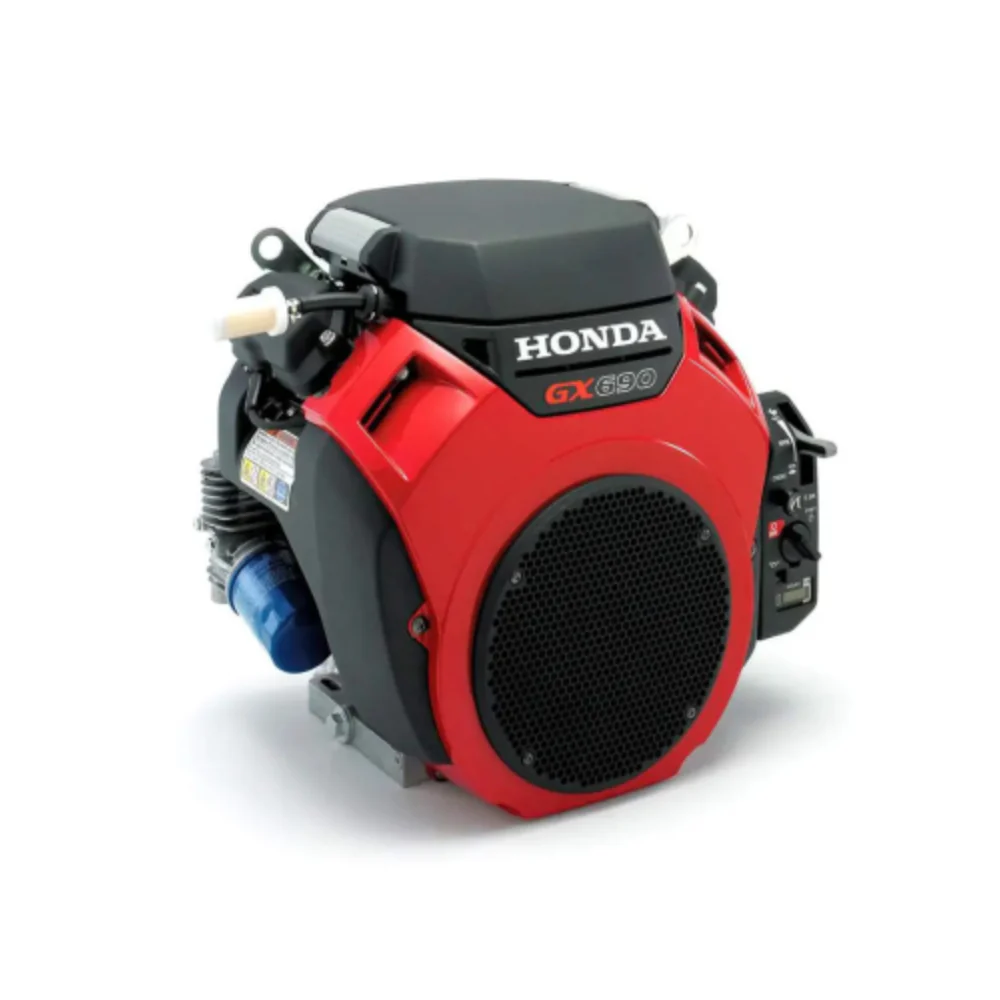

Honda Big Series Engine GX690
Honda Big Series Engine GX690
| Specification | Details |
|---|---|
| Engine Model | Honda GX690 |
| Engine Type | 4-Stroke, OHV, V-Twin, Horizontal Shaft |
| Displacement | 688 cc |
| Bore x Stroke | 78 mm x 72 mm |

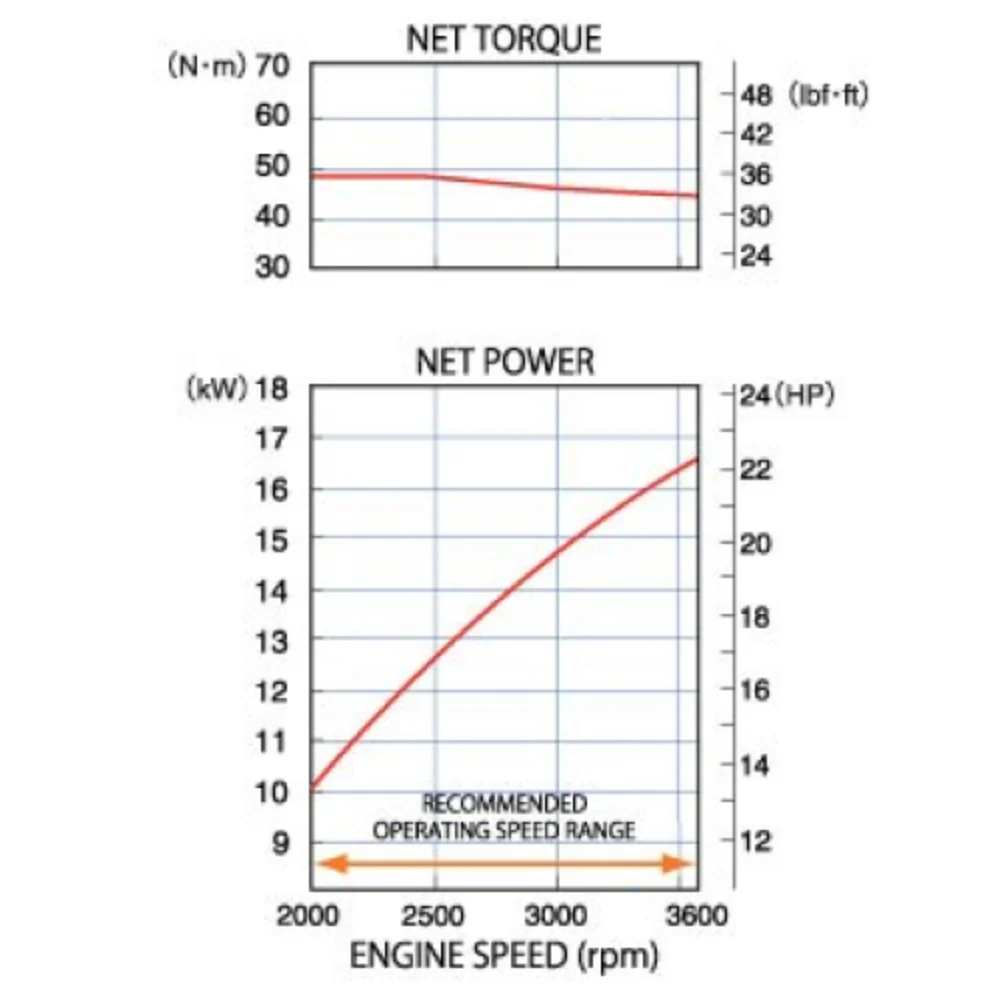

| Max Power Output | 22 HP @ 3600 RPM |
| Max Net Torque | 48 Nm @ 2500 RPM |
| Starting System | Electric Start (Recoil Optional) |
| Cooling System | Forced Air Cooling |
| Fuel Type | Unleaded Petrol |
| Fuel Tank | Not included (tank external) |
| Oil Capacity | 1.9 Litres |
| Lubrication | Pressurized with Oil Filter |
| Cylinder Block | Cast Iron Sleeve |
| Shaft Type | Horizontal, Keyed Shaft |
| Dimensions (LxWxH) | 455 x 415 x 443 mm |
| Dry Weight | 46.5 kg |
| Applications | Chippers, Generators, Hydraulic Equipment, Tractors |
$697.25
Original: $1,992.15
-65%Honda Big Series Engine GX690—
$1,992.15
$697.25Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Honda Big Series Engine GX690
| Specification | Details |
|---|---|
| Engine Model | Honda GX690 |
| Engine Type | 4-Stroke, OHV, V-Twin, Horizontal Shaft |
| Displacement | 688 cc |
| Bore x Stroke | 78 mm x 72 mm |
| Max Power Output | 22 HP @ 3600 RPM |
| Max Net Torque | 48 Nm @ 2500 RPM |
| Starting System | Electric Start (Recoil Optional) |
| Cooling System | Forced Air Cooling |
| Fuel Type | Unleaded Petrol |
| Fuel Tank | Not included (tank external) |
| Oil Capacity | 1.9 Litres |
| Lubrication | Pressurized with Oil Filter |
| Cylinder Block | Cast Iron Sleeve |
| Shaft Type | Horizontal, Keyed Shaft |
| Dimensions (LxWxH) | 455 x 415 x 443 mm |
| Dry Weight | 46.5 kg |
| Applications | Chippers, Generators, Hydraulic Equipment, Tractors |
