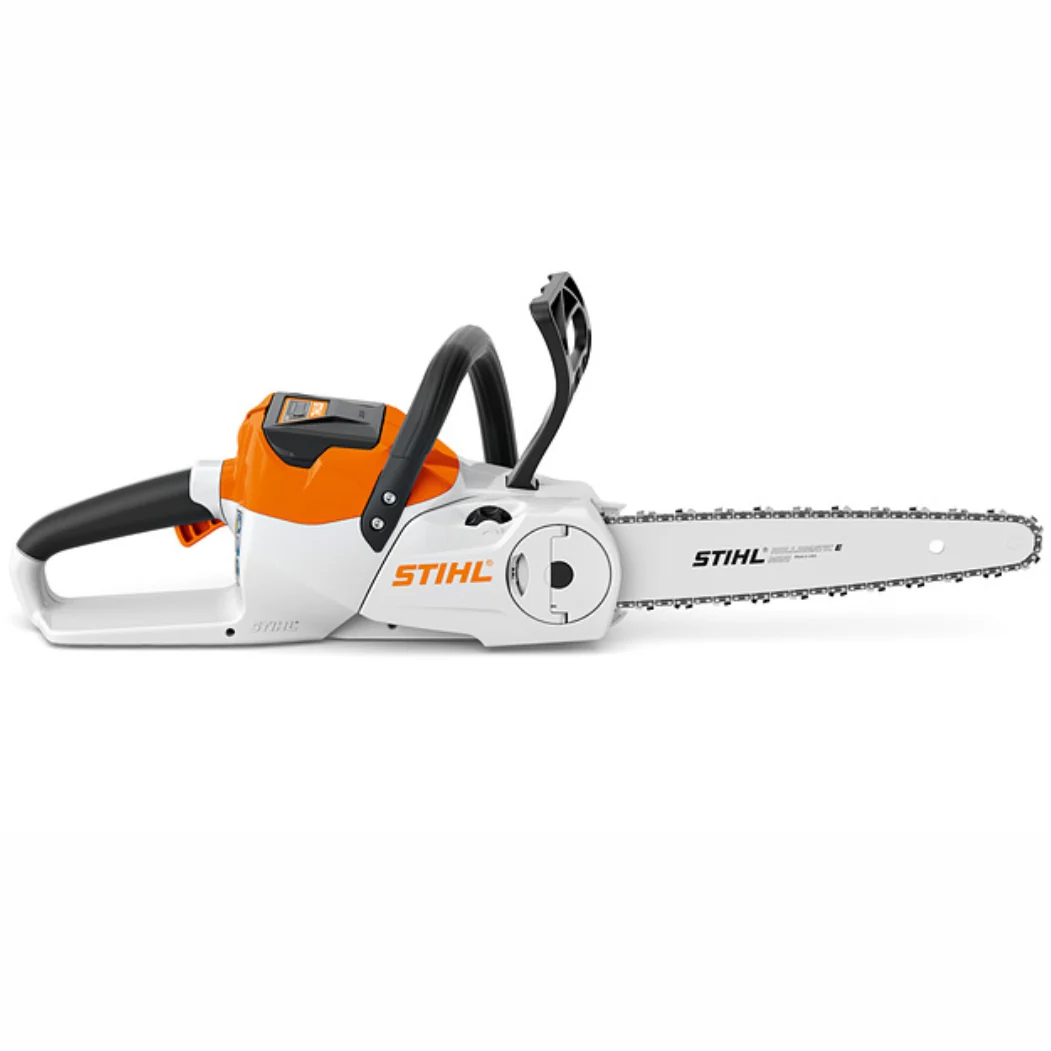

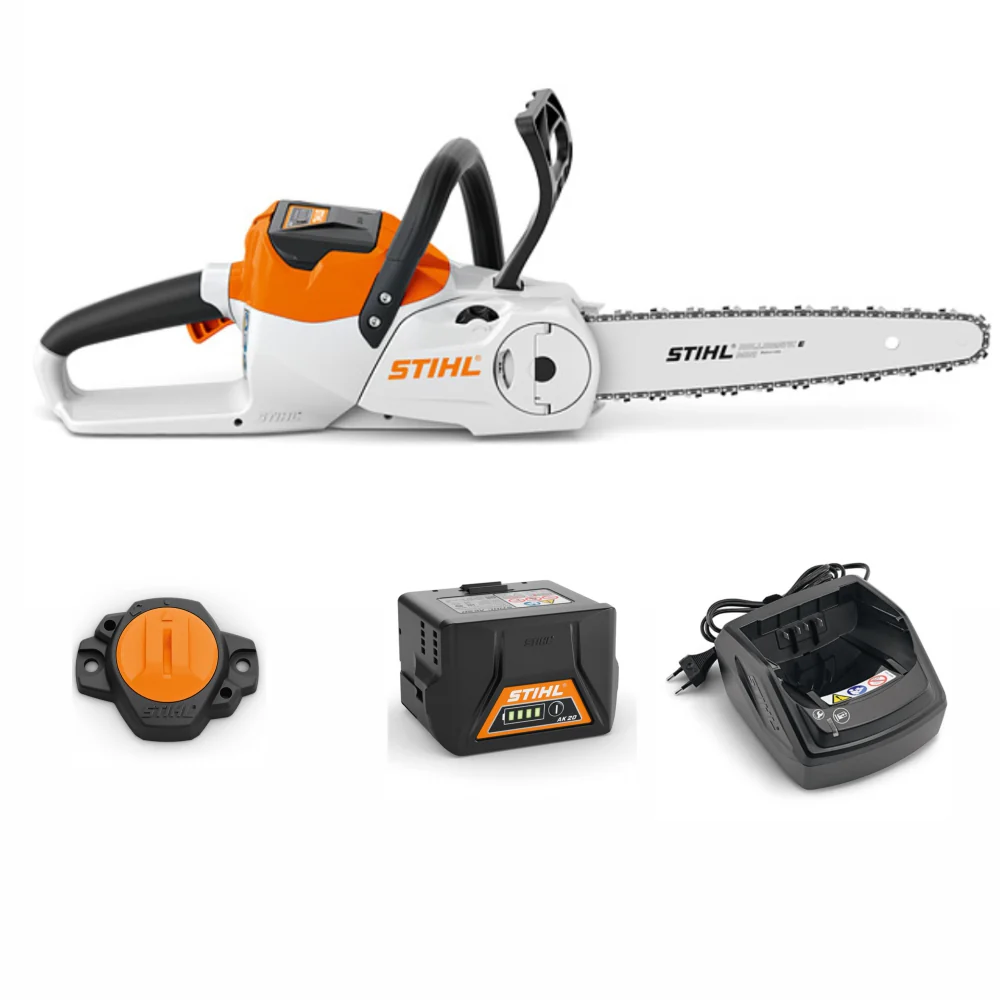

STIHL MSA 140 C-B 14″ Cordless Chainsaw Kit (AK 20 Battery & AL 101 Charger)
MSA 140 Chainsaw with 14 inch Guide bar & Saw Chain with AK 20 battery and AL 101 charger
Technical Specification
| Power Source | Cordless Lithium-Ion Battery |
| Battery | AK 20 (36 V / 2.5 Ah) |
| Charger | AL 101 (100–240 V AC → 36 V output) |
| Rated Voltage | 36 V |
| Power Output | 1.3 kW |
| Guide Bar Length | 14 in (35 cm) |
| Chain Type | PICCO Micro 3/8″ PMM3 |
| Chain Oil Capacity | 100 ml |
| Weight (w/o battery) | 2.6 kg (5.7 lb) |
| Weight (with battery) | 3.7 kg (8.2 lb) |
| Tool-Free Tensioning | Yes |
| STIHL Quickstop® Brake | Yes (inertia-activated) |
| Anti-Vibration System | Yes |
| Noise Level | 94 dB(A) |

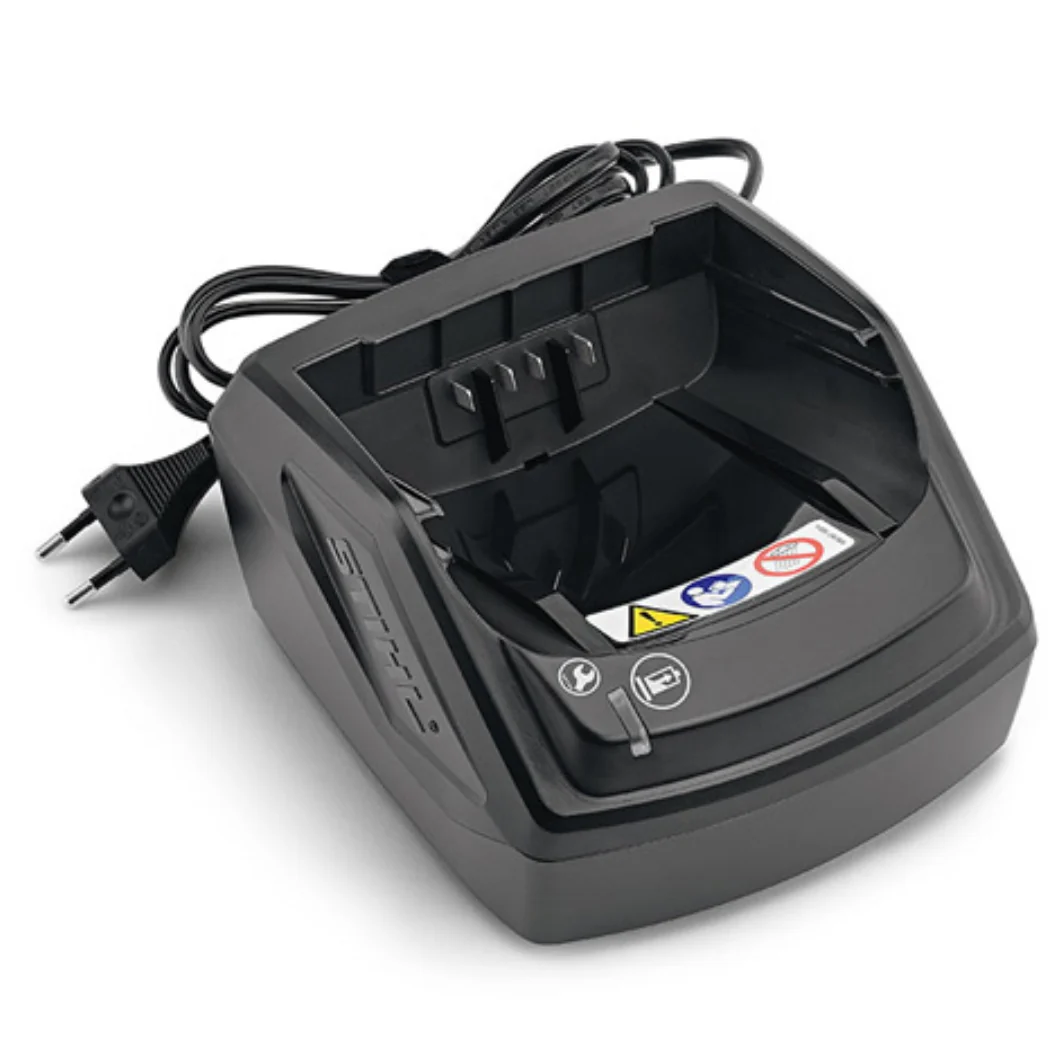

Charger AL 101
230 V. Compatible with STIHL AK and AP batteries. With charge-level indicator (LED). Cable tie with Velcro tape. Wall-mounting possible.
| Charging current | 1.6 A |
| Charging time AK 20 | 180 min |
| Weight | 0.7 kg |
| Power consumption | 0.08 kW |

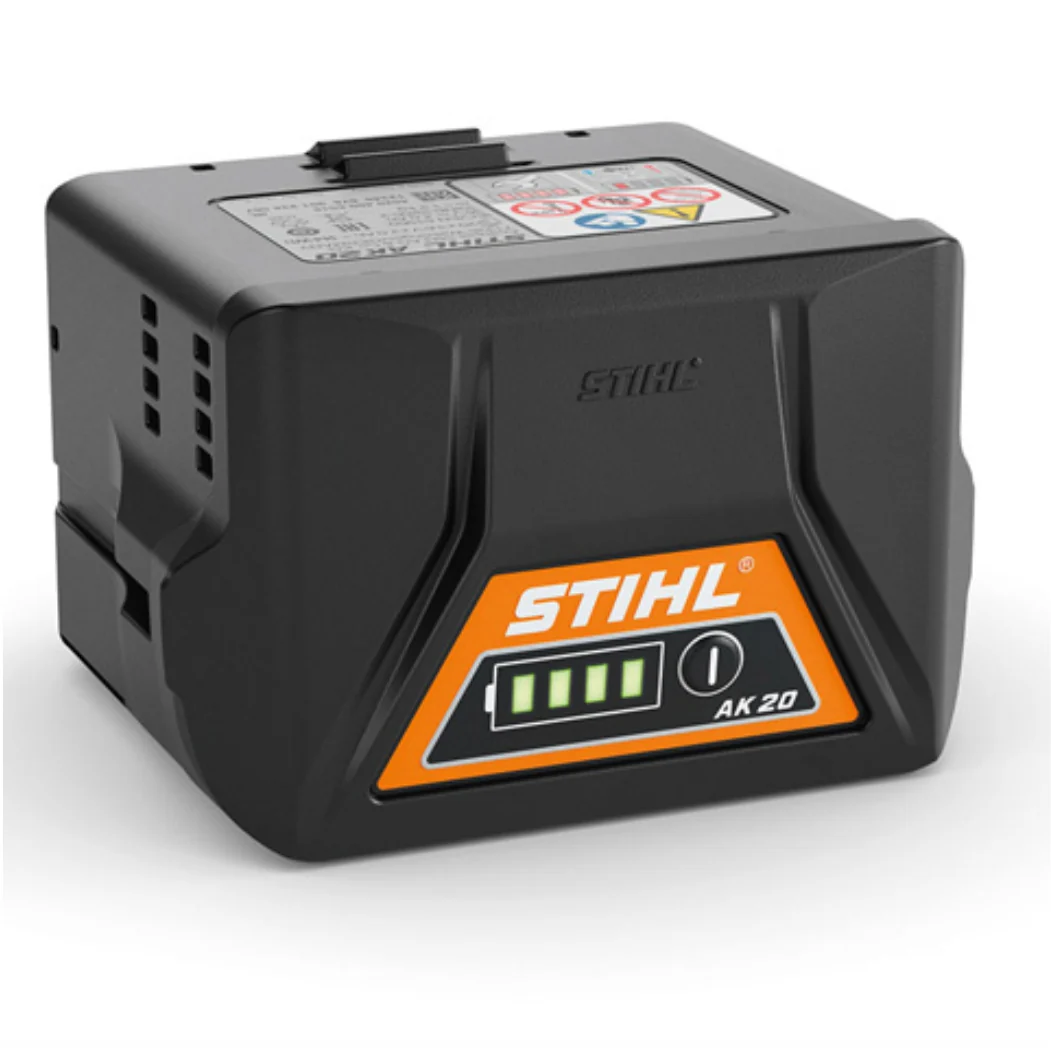

Battery AK 20
Compact lithium-ion battery for the STIHL AK-System with a voltage of 36 V and a capacity of 144 Wh. Battery life depends on the device type. With charge level indicator (LED). Compatible with AL 101, AL 100, AL 300 and AL 500 chargers
| Battery weight | 1.2 kg |
| Rated voltage | 36 V |
| Battery cell technology | Lithium-Ionen AK-System |
| Battery energy content | 144 W·h |
EC Engine
LOW-MAINTENANCE AND EFFICIENT. Thanks to its compact design, low weight and high efficiency, the EC engine enables you to work in an energy efficient manner. This engine also has a long service life.
Quiet operation
The STIHL AK-System devices are so quiet you don't even need ear protection.
STIHL Chain Quick Tensioning (B)
The STIHL chain quick tensioning system (B) makes it very easy to tension the chain. Just release the sprocket cover and turn the knob to set the optimum tension. No tools needed.
QuickStop Super Chain Brake (Q)
The additional braking system for extra safety. Users can trigger the chain brake directly at the rear handle. The chain stops in seconds whenever the user lets go of the rear handle and whenever there is sufficiently strong kickback or when the front hand guard is activated. This unique safety feature ensures even more user protection in all working positions.
Toolless filler cap
The tank can be filled quickly and easily using the toolless filler cap.
Two-handled operation
The ergonomically shaped handle and rear control handle with comfortable soft-grip component ensure safe working in all operating positions.
Control handle
The soft black component on the rear control handle ensure a safe and secure grip in any situation. The control lever must be released using the lock button on the side.
